Leigh Road Permeable Concrete Driveway
Siteworks constructed an approximately 200 m² permeable concrete driveway for a residential property on Leigh Road in Whangateau.
The client needed a durable, long term driveway that could provide reliable access to the garage, support multiple vehicles and a boat, and complement the appearance of a newly built home. Due to local stormwater requirements and site constraints, a conventional concrete driveway was not the right fit. Permeable concrete provided the ideal solution, delivering strength, drainage performance, and a clean residential finish.
Project Overview
The Leigh Road project involved the construction of a large residential permeable concrete driveway for a newly built home in Whangateau.
Siteworks was engaged to deliver a practical and durable driveway solution that would perform under everyday residential use while also meeting local stormwater requirements. The completed driveway needed to support vehicle access to the garage, provide space for multiple vehicles and a boat, and maintain a high quality finish that suited the home’s appearance.
Because the site had specific drainage and coverage requirements, standard concrete was not suitable. Permeable concrete was selected because it allows rainwater to pass through the pavement and naturally infiltrate into the ground below, helping manage runoff without compromising the function or appearance of the driveway.
The project required careful planning around existing underground services, restricted access, dense soils, tree roots, and accurate surface levels.
The Goal
The client required a strong, reliable, and visually appealing driveway that would support regular residential use while meeting local stormwater requirements.
The project needed to:
- Provide durable access to the garage
- Support the weight of multiple vehicles and a boat
- Complement the newly built home
- Meet local stormwater and drainage requirements
- Provide a clean, practical residential finish
A key objective was to create a driveway that looked like a premium concrete surface while also providing the drainage benefits of permeable concrete.
The CHALLENGE
The project presented several site challenges that needed to be carefully managed throughout the works.

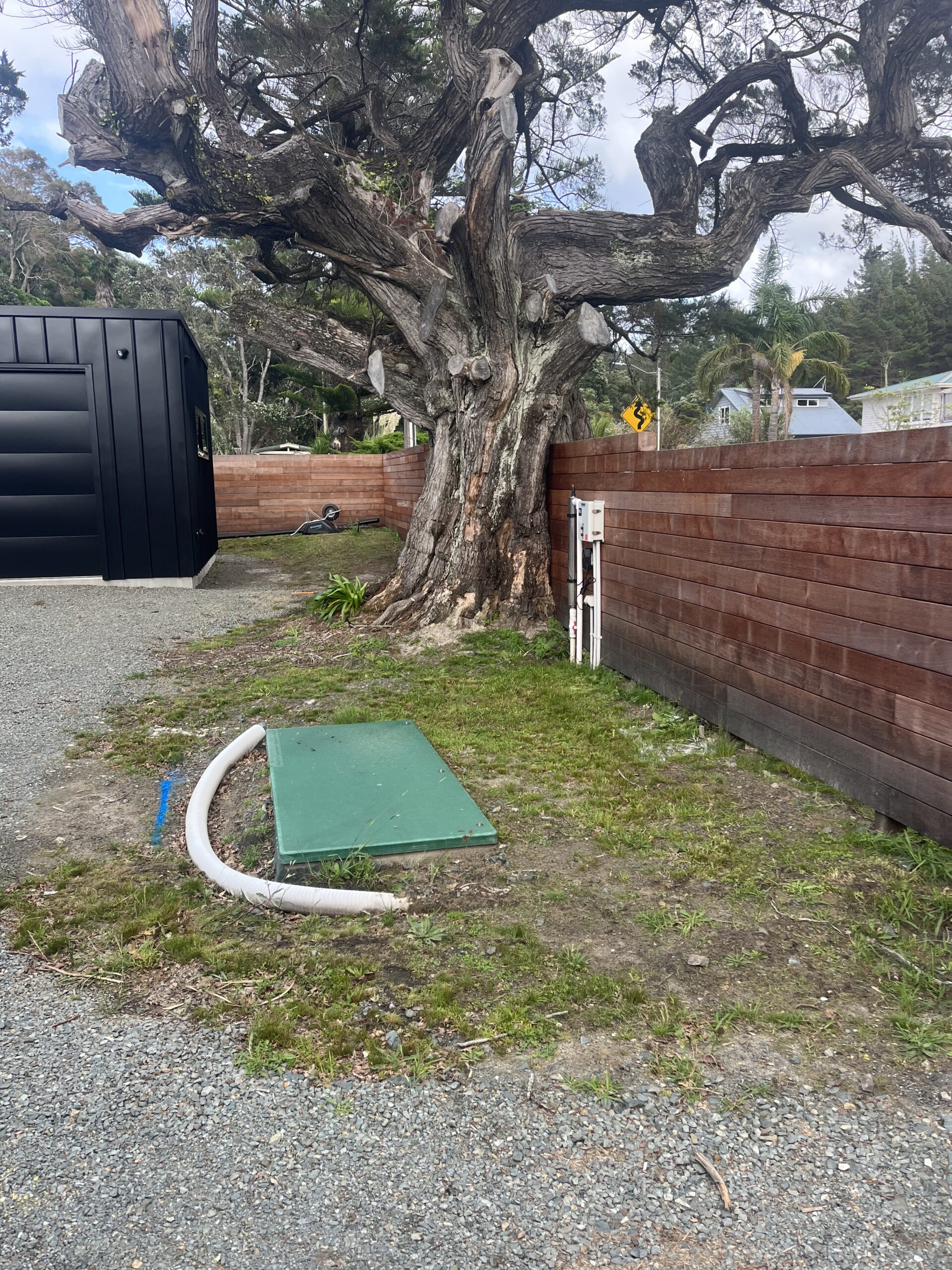

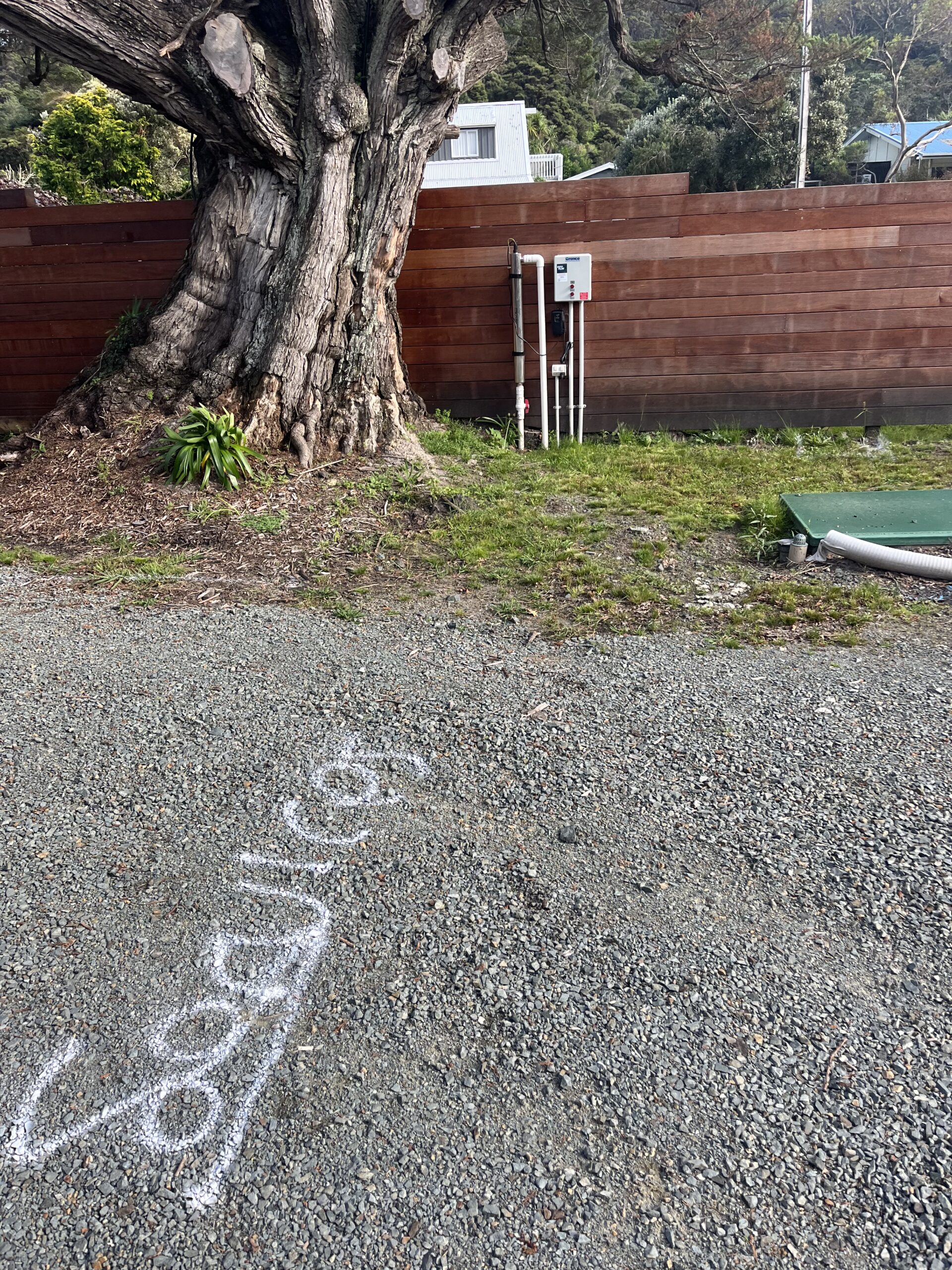

Existing underground services, including power and water, needed to be accurately located and protected before and during excavation. The property also had restricted access in several areas, which meant the work needed to be carefully staged and machinery use had to be planned efficiently.

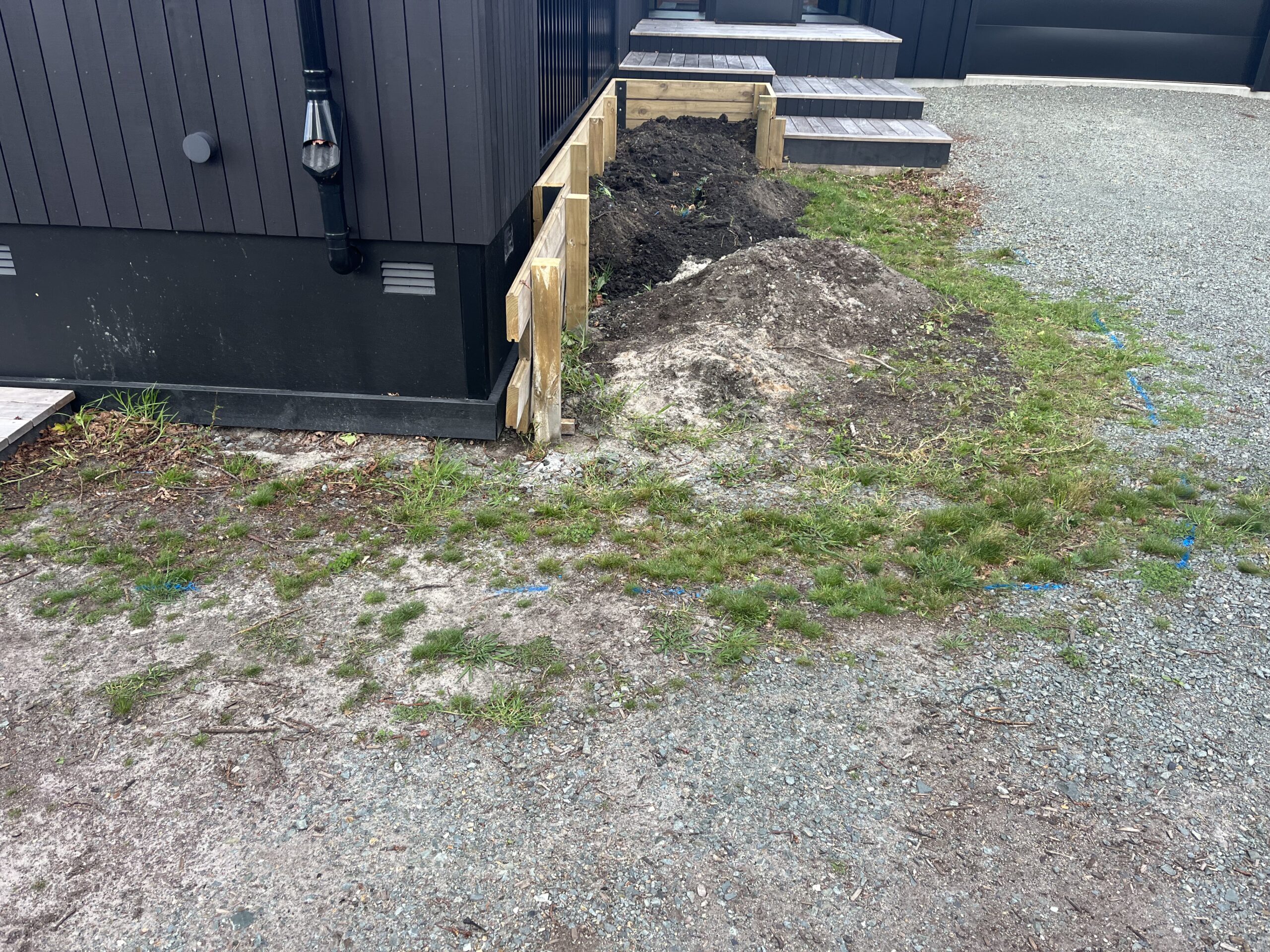

The ground conditions were also challenging. Dense soils and an extensive network of tree roots needed to be excavated before the driveway could be constructed. Despite these constraints, the finished surface still needed to meet the required levels, provide reliable drainage, and achieve a high quality appearance.
Key challenges included:
- Locating and protecting underground power and water services
- Managing restricted access around the property
- Excavating dense ground conditions
- Removing and working around tree roots
- Maintaining accurate finished levels
- Supporting future vehicle and boat loads
The project required both careful groundwork and precise permeable concrete placement to achieve the required result.
The Siteworks Solution

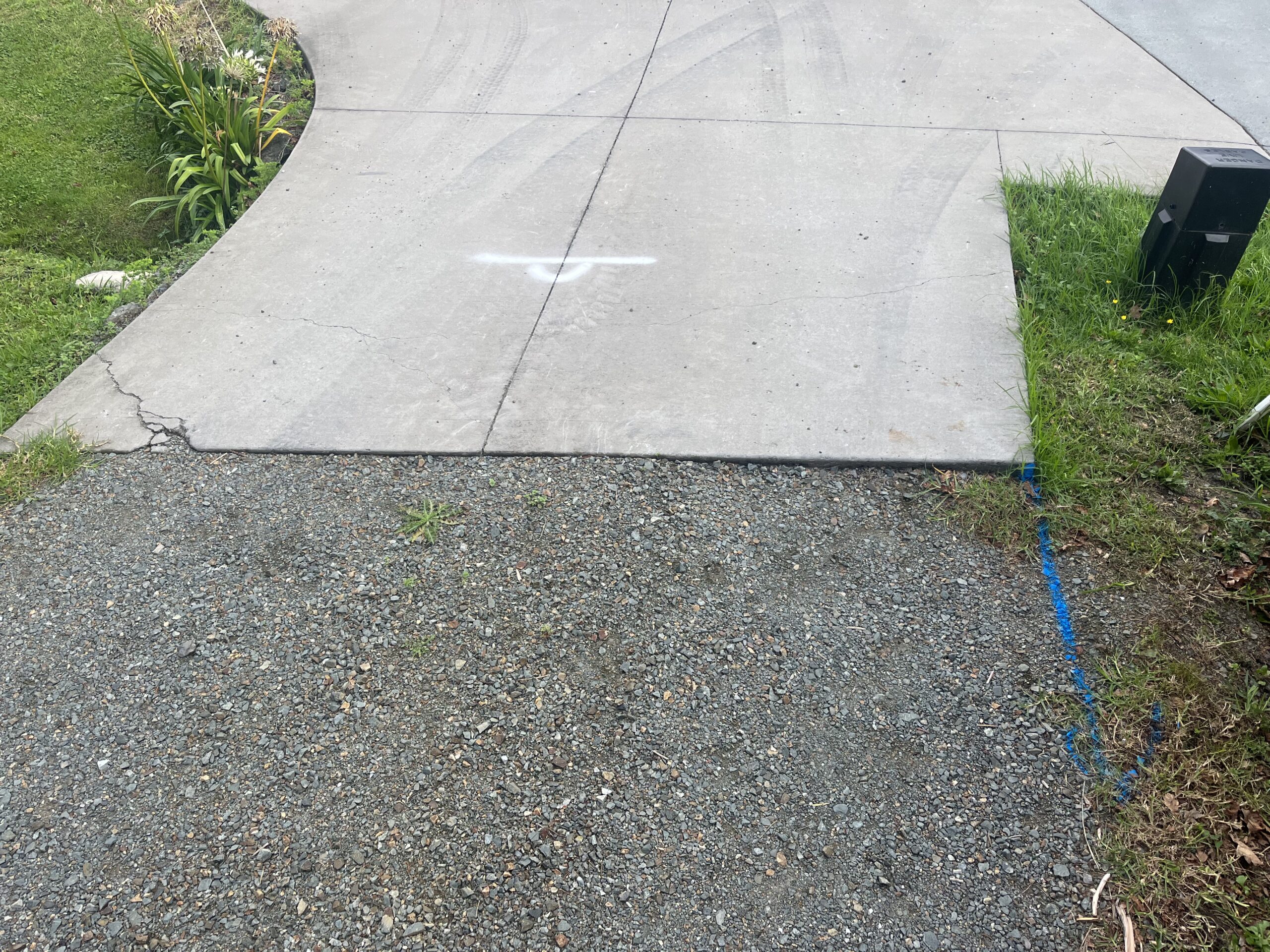

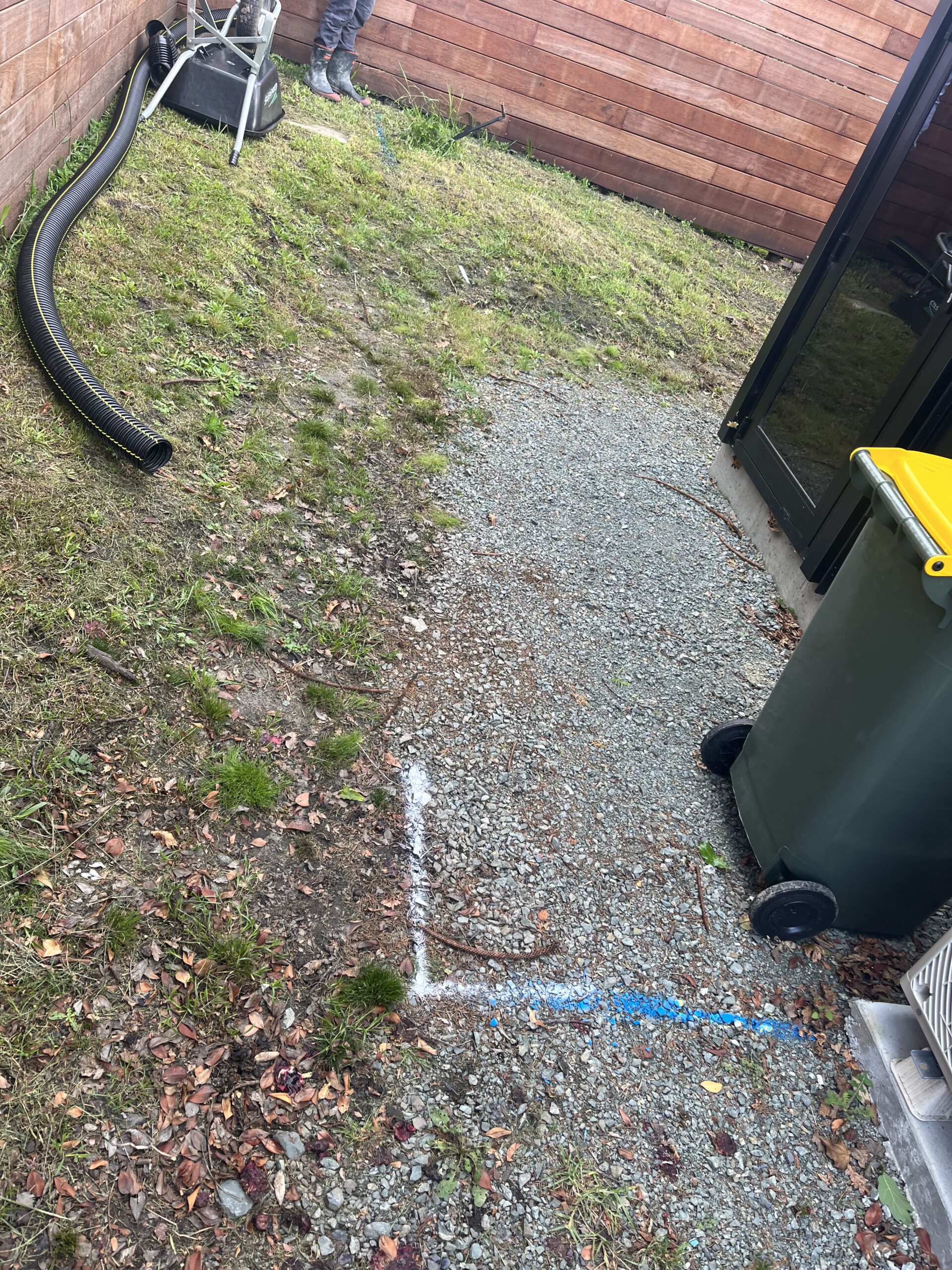

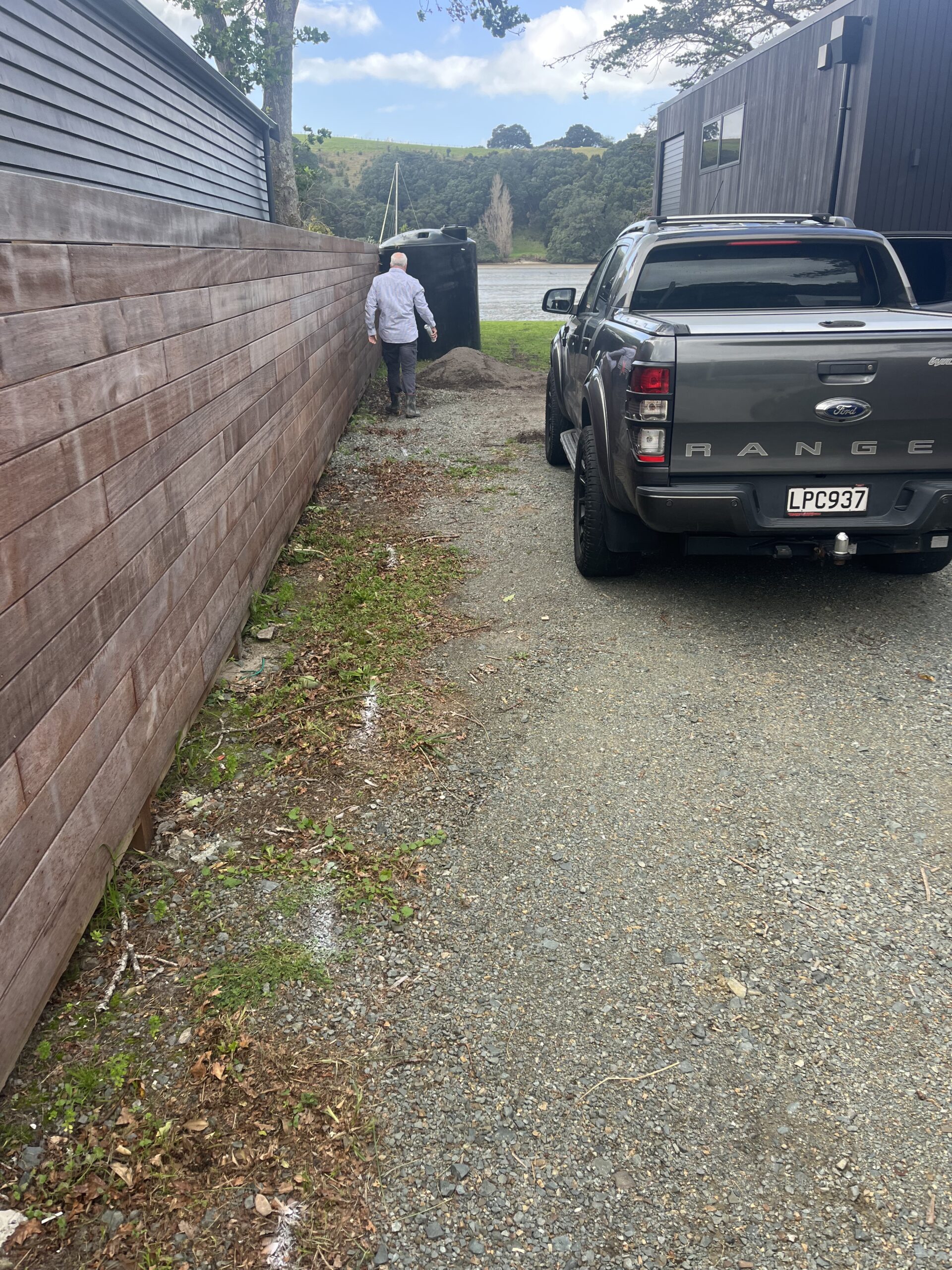

Siteworks began by locating services and setting out the driveway to confirm alignment, levels, and construction requirements.
The existing driveway area was excavated to approximately 300 mm below finished surface level. An initial stabilising layer was placed to prepare the subgrade and create a suitable base for construction. Timber boxing was then installed to define the driveway shape, alignment, and finished levels.

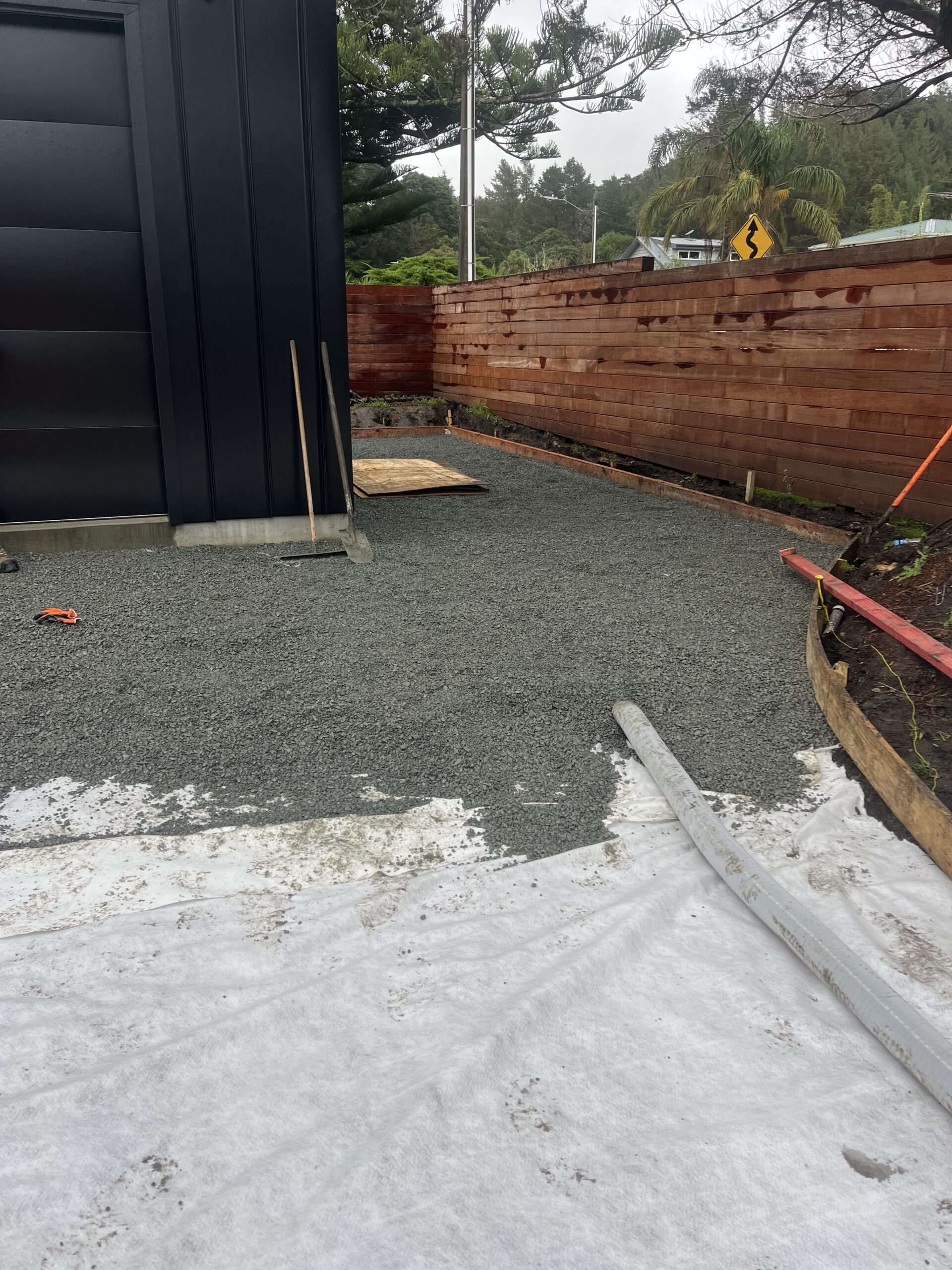

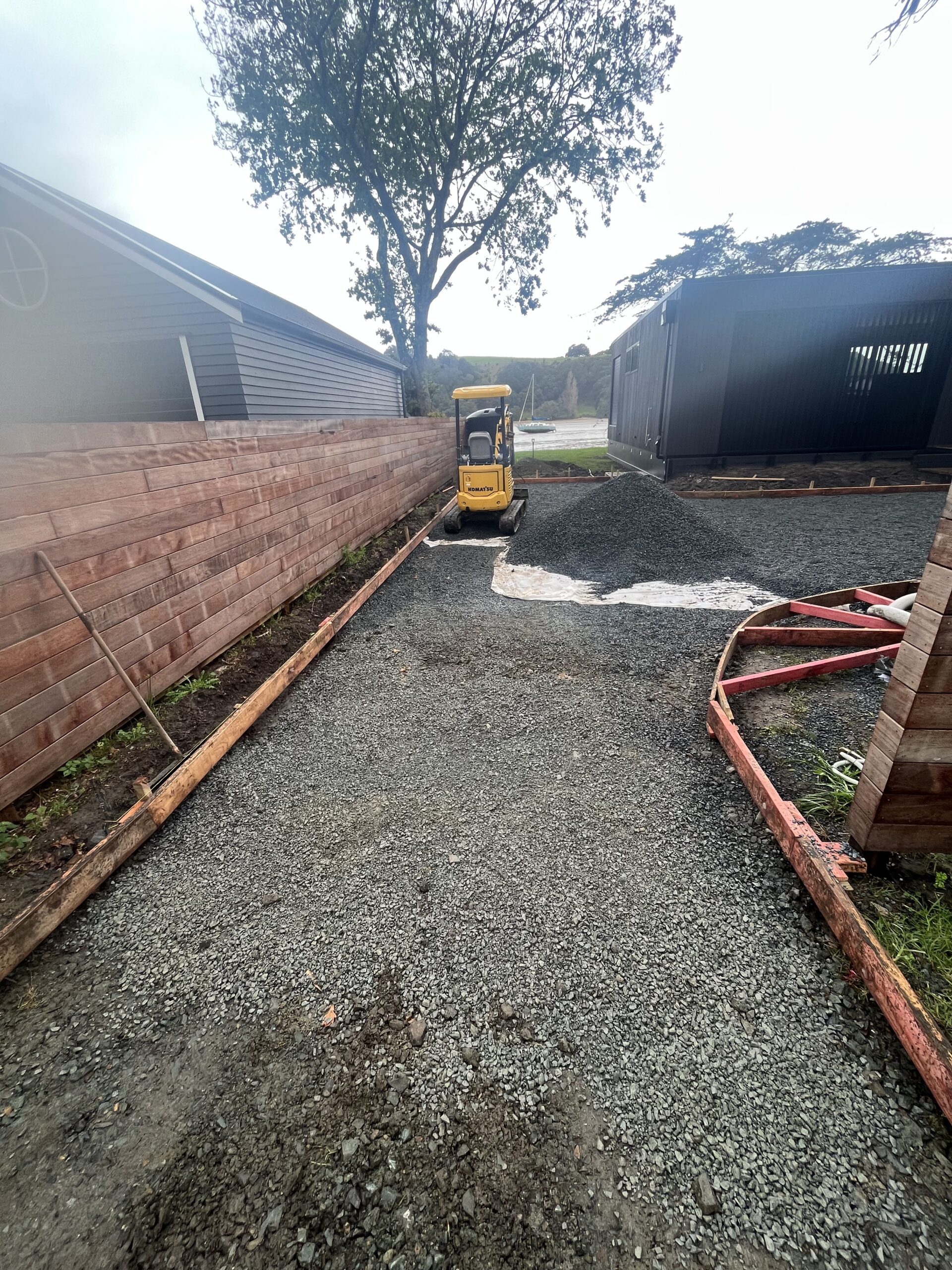

A 150 mm layer of basecourse was placed within the boxing to form the structural foundation of the pavement. This base layer was prepared to support long term vehicle use and allow the permeable concrete system to perform correctly.
Once the required levels and falls had been achieved, approximately 200 m² of 150 mm thick permeable concrete was placed and finished. Black oxide was included in the mix, giving the driveway a clean, refined appearance that suited the newly built home.
- Service location and driveway set out
- Excavation to approximately 300 mm below finished surface level
- Subgrade stabilisation
- Timber boxing and formwork
- Basecourse placement to 150 mm depth
- Installation of approximately 200 m² of permeable concrete
Quality assurance inspections were carried out throughout construction to ensure the required levels, finish, and overall quality standards were achieved before the completed driveway was handed back to the client.
The result
The completed driveway provided the client with a strong, attractive, and environmentally responsible solution that enhanced the appearance of the property while meeting local stormwater requirements.
The permeable concrete driveway delivers the clean look of a traditional concrete driveway while allowing rainwater to infiltrate through the pavement. This helps manage runoff on site and provides a durable surface designed for long term residential use.

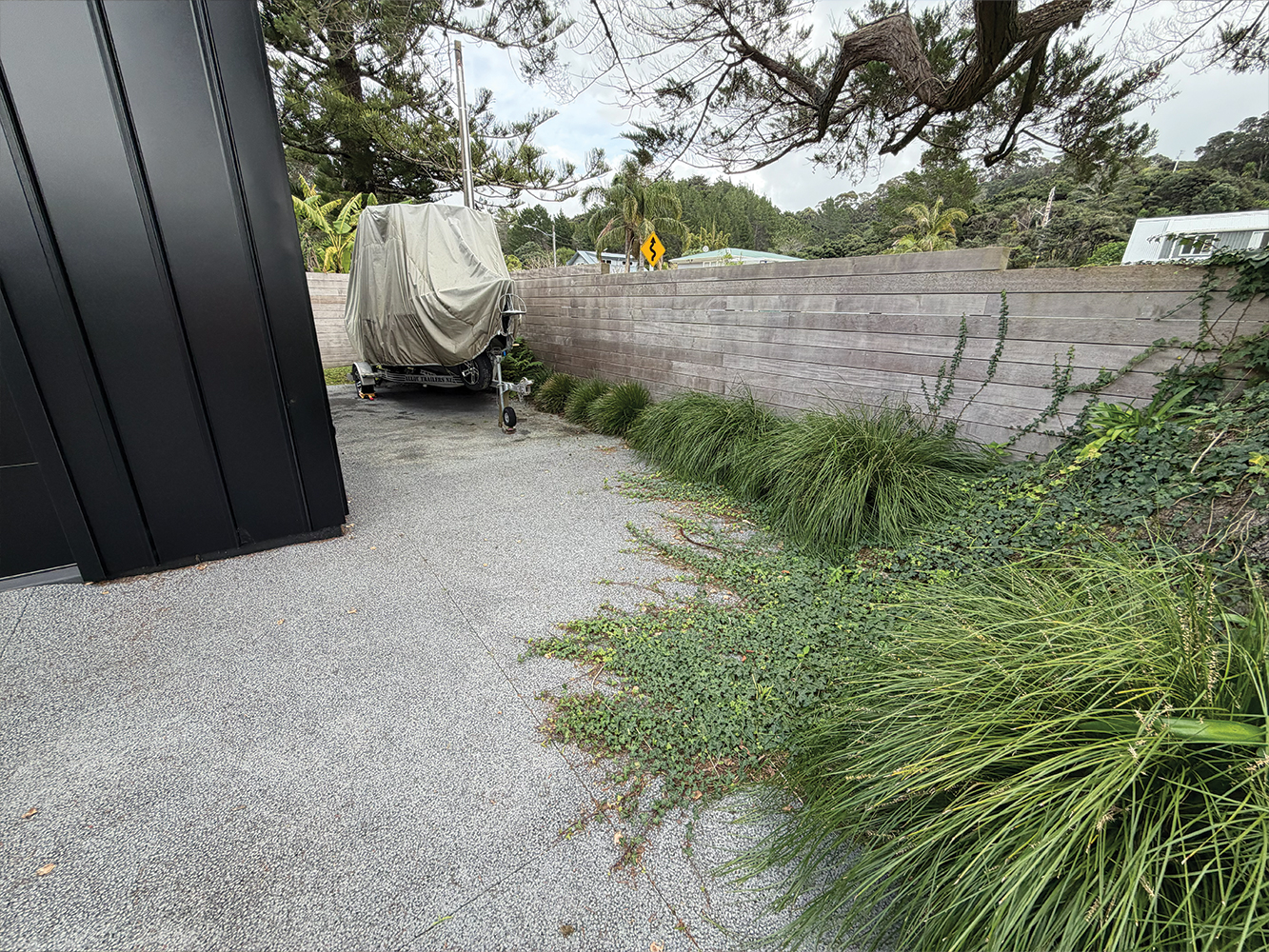

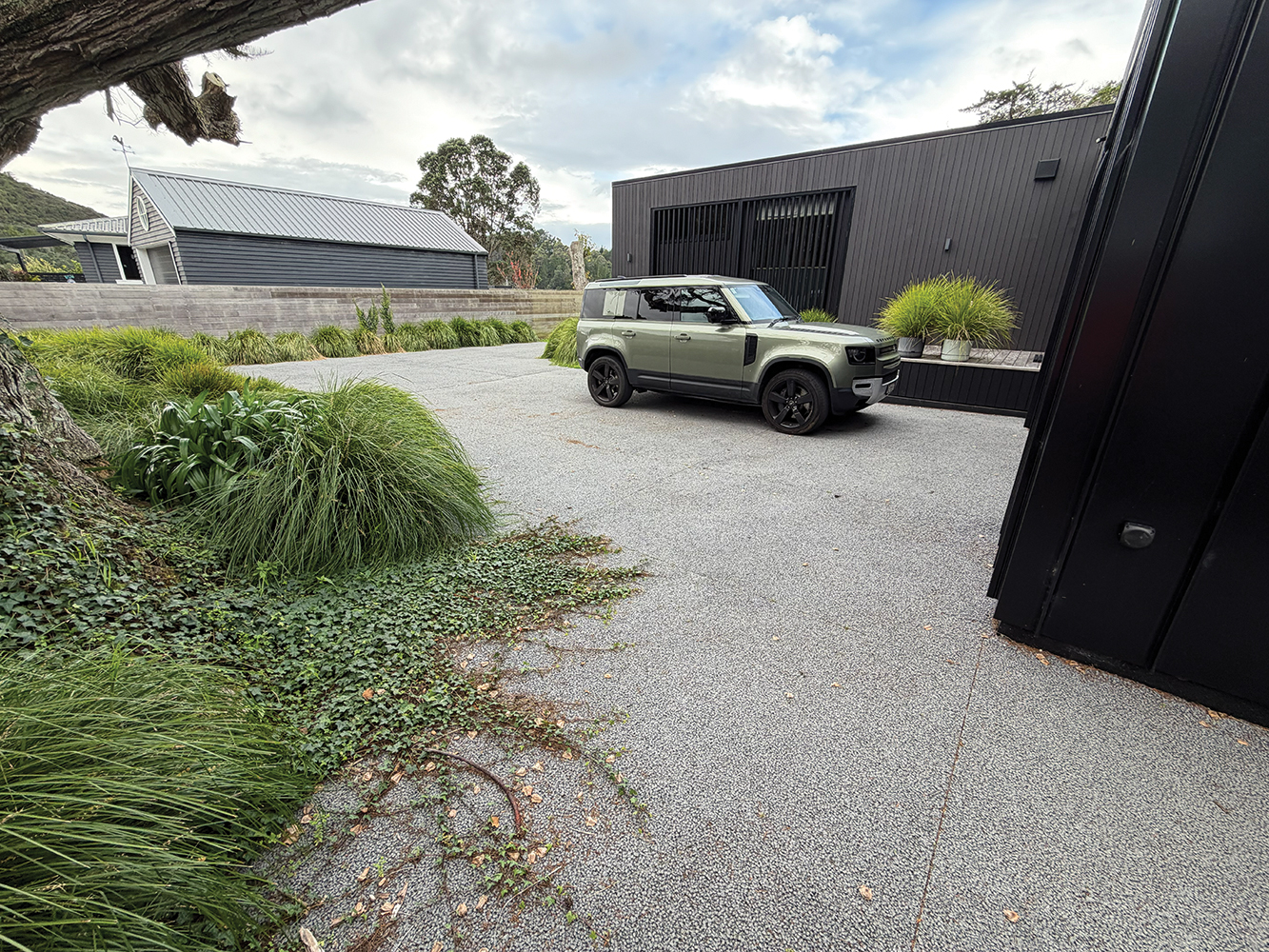

Recent photos taken four years after installation show that the driveway has maintained its strength, drainage performance, and sharp appearance. This demonstrates the long term benefits of a properly constructed permeable concrete system and highlights the value of investing in the right pavement solution from the start.
This project is a strong example of how practical civil works, detailed investigation, and staged delivery can solve complex drainage issues in active school environments.
Project Highlights
- Constructed an approximately 200 m² permeable concrete driveway
- Delivered a durable driveway for a residential property in Whangateau
- Supported access for multiple vehicles and a boat
- Used permeable concrete to meet local stormwater requirements
- Included black oxide for a clean, refined finish
- Excavated to approximately 300 mm below finished level
- Installed a 150 mm basecourse layer
Services Used
The project included a range of practical Siteworks services, including:
- Permeable concrete installation
- Residential driveway construction
- Excavation
- Subgrade preparation
- Basecourse supply and placement
- Boxing and formwork
- Service location and protection
- Drainage focused pavement construction
Why This Project Matters
The Leigh Road project shows how permeable concrete can provide a practical and attractive solution for residential properties where standard concrete is not suitable.
For homes with stormwater requirements, drainage constraints, or site coverage limits, permeable concrete can help manage rainwater while still delivering a strong and visually appealing driveway. It gives homeowners the benefit of a clean concrete finish, while allowing water to move through the pavement and into the ground below.
This project also demonstrates the importance of correct preparation. By managing excavation, subgrade stabilisation, basecourse placement, boxing, and concrete installation carefully, Siteworks delivered a driveway that continues to perform years after construction.
It is a clear example of how experienced planning, strong site preparation, and quality permeable concrete installation can create a long lasting result for residential properties.
